Inicio /Productos/Cámara de seguridad IP PTZ/Waterproof / Waterproof 1080P 4G Wired 6 Inch IP PTZ 22X Mini Optical Zoom AI Human Auto Tracking Rotation

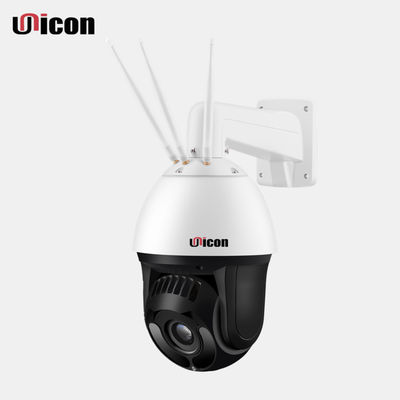

Waterproof / Waterproof 1080P 4G Wired 6 Inch IP PTZ 22X Mini Optical Zoom AI Human Auto Tracking Rotation

2 Pieces
MOQ
$209.00(2 - 49 Pieces) $199.00(>=50 Pieces)
Precio
Waterproof / Waterproof 1080P 4G Wired 6 Inch IP PTZ 22X Mini Optical Zoom AI Human Auto Tracking Rotation
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Model Number: UN-IPTZ6500(G)-22X
Special Features: Waterproof / Weatherproof
Sensor: CMOS
Technology: AI Human Body Face Zooming Programing Presets Patrolling PTZ
Zoom: 22X
Product name: 2mp IP PTZ Camera
Effective Pixels: 1920*1080
Lens: 4.7-94mm
IR Distance: Night Vision 200M
IR LED: 4pcs LASER LED + 4pcs IR LED
Power: DC12V/4A power supply
Warranty: 3 Years warranty
Certificate: CE FCC RoHs
Información básica
Certificación: CE FCC RoHs
Model Number: UN-IPTZ6500(G)-22X
Pago y Envío Términos
Packaging Details: 2PCS/CTN
Descripción de producto
Product Description

1080P 4G Wired 6 Inch Mini IP PTZ 22X Optical Zoom Human AI Auto Tracking Rotation

Key Features:

4G Version optional
Intelligent AI Human Smooth Tracking
Support voice broadcast; (alarm voice can be customized by client)
0.05Lux, black and white: 0.01Lux, 0 Lux with IR
Maximum image 1920×1080
Preset Point 256 4pcs LASER LED + 4pcs IR LED Distance 250M
Power Standard DC 12V/4A  Weight 4KG
Intelligent alarm, mobile APP viewing, SD card storage, message push
Horizontal speed 0.05 ° ~ 240 ° / s 10. Dang
Straight speed 0.05°~180°/s
Support SD Card slot (Max 128G)
Two way audio, APP precise control



Specification :

Camera

Image Sensor:

1/2.8” SONY CMOS

Effective Pixels:

1920*1080

Optical Zoom:

22X

Focal Length:

4.7-94mm

Aperture Range:

F1.6-F3.5

Angle of View:

61.4º-2.9º(Wide-Tele)

Day& Night:

ICR

Focus Mode:

Auto /Manual

S/N Ratio:

>52dB

BLC:

ON/OFF

White Balance:

Auto / Manual

Shutter Time:

1/1s-1/30,000s

AGC:

Auto/Manual

Min.illumination:

Color:0.05Lux@(F1.6,AGC ON)

B/W: 0.01Lux@(F1.6, AGC on )

Network

Max.Image

Resolution:

1920*1080

Dual Stream:

Support

Security Measures:

Password protection, multiuser access control

Protocols:

TCP/IP,HTTP,DHCP,DNS,DDNS,RTP,RTSP,PPPOE,NTP,UPNP,SNMP,FTP,802.1x,QOS,HTTPS,IPv6(SRTP)ONVIF

Interface:

1 network interface,1 power input

IR LED

IR Leds:

4pcs LASER LED + 4pcs IR LED

IR Range:

250m

IR Action Mode:

Auto/Manual/Camera

IR Led Power:

15W

 Pan & Tilt & Zoom



Pan Range:

360° endless

Pan Speed:

Pan Manual Speed: 0.01°-120°/s,
Pan Preset Speed: 220°/s

Tilt Range:

-5°-90° (Auto Flip )

Tilt Speed:

Tilt Manual Speed: 0.1°-120°/s,
Tilt Preset Speed:120°/s

Number of Preset:

256

Patrol:

8 patrols, up to 32 presets per patrol

Auto Scan:

8 scans with settable left and right boundaries

Pattern:

4 patterns, up to 500 instructions per pattern

General

OSD Menu:

English / Chinese

VAL:

Support

Wiper:

Standard Configuration

Power Box:

Optional

Power Supply :

DC12V+-10%

Power Consumption:

38W

Working Temperature /Humidity:

-35°C-+55°C
90% or less(No Condensing)

Protection Level:

IP66 standard
Level 2 lightning protection, 4000V surge protection

Mounting:

Various mounting modes option:wall-mount,pendant-mount

Weight(approx.):

2.5kg

Accessories:

Wall-mount bracket,Power adapter(DC12v)



Hardware details

Invisible IR LED with dark glass

Special thermal diffusion ball shell, make it stable working at high tempreture environment :





1x & 22x Image Quality Comparison :





Image on quality of People tracking :







22X night vision quality :





Solar panel optional :
